The base class for GUI elements. More...

#include <CSMAPI_types.h>

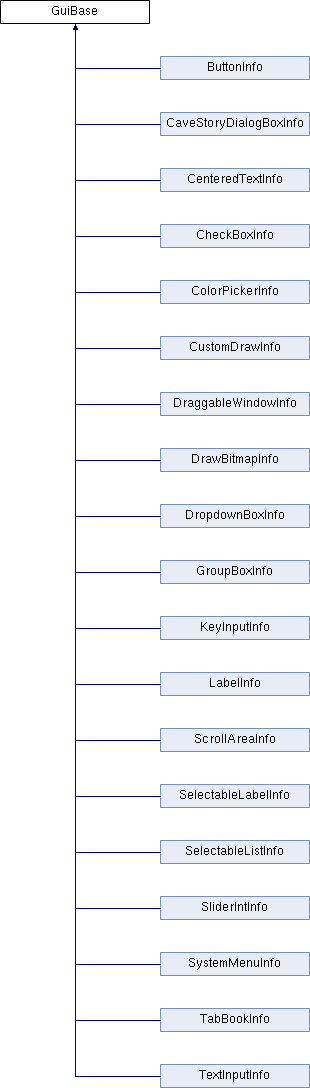

Inheritance diagram for GuiBase:

Public Types
enum	ProcessReturnType { PRT_DIRTY = 0b000001 , PRT_IGNORE_MOUSE = 0b000010 , PRT_IGNORE_KEYS = 0b000100 , PRT_SELECTED = 0b001000 , PRT_DISABLE_MOUSE_ON_MOVE = 0b010000 , PRT_CHANGED = 0b100000 }
	Return flags for GuiBase::process and GuiBase::processKeys. More...

typedef void(*	OnHoverChangeCallbackFunc) (GuiBase *, int value)
	Hover callback.

typedef void(*	OnValueChangeCallbackFunc) (GuiBase , const char &newValue)
	Value change callback.

typedef bool(*	OnValidateChangeCallbackFunc) (GuiBase , const char oldValue, char *newValue)
	Validate change callback.

Public Member Functions
	GuiBase ()
	Default constructor.

virtual	~GuiBase ()
	Default deconstructor.

virtual const char *	getClassName ()
	Get this class' name. More...

virtual void	setSelected (int value)=0
	Set this GUI element as selected or not. More...

virtual void	setHovered (int value)=0
	Set this GUI element as hovered over or not. More...

virtual bool	isSelected ()=0
	Check selection status. More...

virtual bool	isHovered ()=0
	Check hover status. More...

virtual bool	isHoverable ()=0
	Check hoverability status. More...

virtual int	getSelectableCount ()
	Get the selectable number of elements in this element. More...

virtual int	getHoverableCount ()
	Get the number of elements that can be hovered over in this element. More...

virtual GuiBase *	getHoverable (int index)
	Get a hoverable sub-element. More...

virtual GuiBase *	getSelectable (int index)
	Get a selectable sub-element. More...

virtual bool	SelectOnMouseUp ()
	Select on mouse up. More...

virtual void	setFont (FontObject *pFont)
	Set the font for this GUI element. More...

virtual FontObject *	getFont ()
	Get the font for this GUI element. More...

virtual int	process (GUI_POINT mouse)=0
	Process mouse input for this element. More...

virtual void	calculate ()=0
	Re-calculate this element's data. More...

virtual void	render ()=0
	Render this element.

virtual int	processKeys ()
	Process key input for this element. More...

virtual void	importantRender ()
	Render the important bits of this element. More...

virtual int	getMagnification ()

	GuiBase (const GuiBase &)=delete

GuiBase &	operator= (const GuiBase &)=delete

	GuiBase (GuiBase &&)=delete

GuiBase &	operator= (GuiBase &&)=delete

Public Attributes
GuiBase *	pNext

GuiBase *	pPrev

OnValueChangeCallbackFunc	OnValueChange
	Called in specific GuiBase children classes to indicate that a value has been changed.

OnValidateChangeCallbackFunc	OnValidateChange
	Called in specific GuiBase children classes to indicate that a value has been changed.

GUI_RECT	rect
	The display rect this GUI element will use.

void *	userData
	Custom user data.

void *	userData2
	Custom user data.

unsigned int	customMagnification
	The magnification to display this element at.

OnHoverChangeCallbackFunc	OnHoverChange
	Called in specific GuiBase children classes to indicate that the GUI element is being hovered over.

bool	has_special_mouse_processing
	Has special mouse processing.

GUI_RECT	hotspot_rect
	The special hotspot rect.

bool	has_special_hotspot_rect
	Has special hotspot rect; If true, 'process' will be called everytime the mouse is inside of 'hotspot_rect' instead of 'rect'.

Static Public Attributes
static unsigned int	defaultCustomMagnification

static GuiBase *	gFirst

Protected Member Functions
void	Link ()
	Link ourselves to the global GUI element linkage.

void	Unlink ()
	Unlink ourselves from the global GUI element linkage.

Detailed Description

The base class for GUI elements.

Member Enumeration Documentation

◆ ProcessReturnType

enum GuiBase::ProcessReturnType

Return flags for GuiBase::process and GuiBase::processKeys.

Enumerator
PRT_DIRTY	This GUI element is dirty and should be updated.
PRT_IGNORE_MOUSE	Stop processing mouse input for this frame.
PRT_IGNORE_KEYS	Stop processing key input for this frame.
PRT_SELECTED	This GUI element was selected.
PRT_DISABLE_MOUSE_ON_MOVE	This is telling the mode to set m_ModeConfig.ProcessMouseOnMove to 'false' so it can process the next frame.
PRT_CHANGED	This GUI element was changed.

Member Function Documentation

◆ calculate()

virtual void GuiBase::calculate ( )

pure virtual

Re-calculate this element's data.

Warning: You should ALWAYS call this at least once BEFORE you call render()!

Implemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ getClassName()

virtual const char* GuiBase::getClassName ( )

inlinevirtual

Get this class' name.

Returns: Should return the name of this class.

Reimplemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ getFont()

virtual FontObject* GuiBase::getFont ( )

inlinevirtual

Get the font for this GUI element.

Returns: Returns the font object for this element.

Reimplemented in TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, KeyInputInfo, TextInputInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ getHoverable()

virtual GuiBase* GuiBase::getHoverable ( int index )

inlinevirtual

Get a hoverable sub-element.

Parameters

index The sub-element's index.

Returns: Returns a sub-element, NULL if it couldn't be resolved.

Reimplemented in ColorPickerInfo.

◆ getHoverableCount()

virtual int GuiBase::getHoverableCount ( )

inlinevirtual

Get the number of elements that can be hovered over in this element.

Returns: Returns the amount of elements that can be hovered over in this element.

Reimplemented in SelectableListInfo, SystemMenuInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, and SelectableLabelInfo.

◆ getSelectable()

virtual GuiBase* GuiBase::getSelectable ( int index )

inlinevirtual

Get a selectable sub-element.

Parameters

index The sub-element's index.

Returns: Returns a sub-element, NULL if it couldn't be resolved.

Reimplemented in ColorPickerInfo.

◆ getSelectableCount()

virtual int GuiBase::getSelectableCount ( )

inlinevirtual

Get the selectable number of elements in this element.

Returns: Returns the amount of selectable elements in this element.

Reimplemented in SelectableListInfo, SystemMenuInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, and SelectableLabelInfo.

◆ importantRender()

virtual void GuiBase::importantRender ( )

inlinevirtual

Render the important bits of this element.

Note: This function is used to draw things that should be at the front of the screen, so make sure to call it AFTER rendering everything else.

Reimplemented in SystemMenuInfo, ColorPickerInfo, DropdownBoxInfo, and SliderIntInfo.

◆ isHoverable()

virtual bool GuiBase::isHoverable ( )

pure virtual

Check hoverability status.

Returns: Returns true if this element can be hovered over.

Implemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ isHovered()

virtual bool GuiBase::isHovered ( )

pure virtual

Check hover status.

Returns: Returns true if this element is being hovered over.

Implemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ isSelected()

virtual bool GuiBase::isSelected ( )

pure virtual

Check selection status.

Returns: Returns true if this element is selected.

Implemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ process()

virtual int GuiBase::process ( GUI_POINT mouse )

pure virtual

Process mouse input for this element.

Returns: Returns ProcessReturnType flags.

See also: ProcessReturnType

Implemented in GroupBoxInfo, SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ processKeys()

virtual int GuiBase::processKeys ( )

inlinevirtual

Process key input for this element.

Returns: Returns ProcessReturnType flags.

See also: ProcessReturnType

Reimplemented in SystemMenuInfo, TabBookInfo, DraggableWindowInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, and TextInputInfo.

◆ SelectOnMouseUp()

virtual bool GuiBase::SelectOnMouseUp ( )

inlinevirtual

Select on mouse up.

Returns: Return false if you want this element to be selected on mousedown instead of mouseup

Reimplemented in SelectableListInfo, SliderIntInfo, KeyInputInfo, TextInputInfo, and SelectableLabelInfo.

◆ setFont()

virtual void GuiBase::setFont ( FontObject * pFont )

inlinevirtual

Set the font for this GUI element.

Parameters

pFont The font object to use.

Reimplemented in SelectableListInfo, SystemMenuInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, KeyInputInfo, TextInputInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ setHovered()

virtual void GuiBase::setHovered ( int value )

pure virtual

Set this GUI element as hovered over or not.

Parameters

value The hover value.

Implemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

◆ setSelected()

virtual void GuiBase::setSelected ( int value )

pure virtual

Set this GUI element as selected or not.

Parameters

value The selection value.

Implemented in SelectableListInfo, SystemMenuInfo, CaveStoryDialogBoxInfo, DrawBitmapInfo, CustomDrawInfo, TabBookInfo, GroupBoxInfo, DraggableWindowInfo, ColorPickerInfo, DropdownBoxInfo, ButtonInfo, SliderIntInfo, CheckBoxInfo, KeyInputInfo, TextInputInfo, ScrollAreaInfo, SelectableLabelInfo, LabelInfo, and CenteredTextInfo.

The documentation for this class was generated from the following file:

H:/dev/Cave-Story-Engine-2-CSE2E-v1.2/src/Mod/CSMAPI_types.h
